點擊圖片放大離心機
離心機
CENTRIFUGE-1
CENTRIFUGE-2
DIGITAL CENTRIFUGE
DIGITAL CENTRIFUGE-1
MICRO HEMATOCRIT CENTRIFUGE-1
DIGITAL MICRO CENTRIFUGE
MICRO HEMATOCRIT CENTRIFUGE-2MODEL：
DSC-154、DSC-154T、DSC-156、DSC-156T、DSC-1512、DSC-1512T
DSC-1524、DSC-1524T
Feature：
＊ Lab. Table top centrifuge is a standard model,
able to use standard 10ml or 15ml centrifuge
tubes.
＊ All model use nylon steel rotor and shield.
(shield inside with rubber cushion) easy clean,
to strike again, tovesist acidity and alkalinity
solution, not broken.
＊ High precision universal motor special designed
use high class silicon steel plate, to be used
exclusively for motor copper wire. High quality
commutator, high precision germany ball bearing
and high sturdy to turn around carbon brush. to
compose of motor is must be over heat. and
very sturdy, these is very imported.
＊ Precision mechanical timer with bell, heat-resisting
to 120℃.
＊ Cooling system：rotor running envoy air circulating
auto-cooling rotor and motor.
＊ Easy operation no need special training.
＊ Speed is very linear and stabilize.
＊ Carbon brush easily replaced.
Specification：
Model | DSC-154T | DSC-156T | DSC-1512T | DSC-1524T | DSC-154 | DSC-156 | DSC-1512 | DSC-1524 |
Speed(rpm) | 300~4000 | do | do | do | do | do | do | do |
Timer(min) | Up 30 | do | do | do | no | no | no | no |
Rotor | 45°angle | do | do | do | do | do | do | do |
Tube size | 10ml、15ml | do | do | do | do | do | do | do |
Tube capacity | 4 | 6 | 12 | 24 | 4 | 6 | 12 | 24 |
O.D.(cm) | 26(W)x26 (D) x23(H) | do | 28(W)x28 (D)x26(H) | 29(W)x29 (D)x30(H) | 26(W)x26 (D)x23(H) | do | 28(W)x28 (D)x26(H) | 29(W)x29 (D)x30(H) |
N.W.(kg) | 4.5 | 4.6 | 9 | 10 | 4.5 | 4.6 | 9 | 10 |
Power | 110/220 | do | do | do | do | do | do | do |
Source | 50/60Hz | do | do | do | do | do | do | do |
AC | 1A/0.5A | 1A/0.5A | 2.5A/1.3A | 3.5A/1.8A | 1A/0.5A | 1A/0.5A | 2.5A/1.3A | 3.5A/1.8A |
MODEL：
DSC-01524SMD、 DSC-01512SMD
Feature：
＊ DS lab. Digital micro-centrifuge is table top square model.
＊ High quality, low noise and low cost.
＊ Safety balance can to add to motor life and to lower noise.
＊ Stainless steel rotor chamber easy to wash clean.
＊ High quality and high precision universal motor.
＊ Precision mechanical timer with bell, heat resisting to 120℃.
＊ Cooling system：rotor running to produce circulating air
constantly cooling off motor.
＊ Easily operating no need special training.

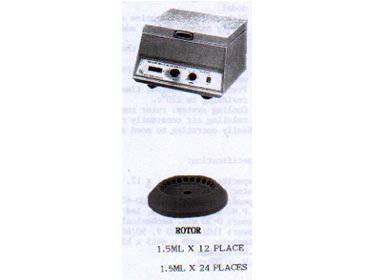

MICRO HEMATOCRIT CENTRIFUGE
Specification：
Capacity：1.5ml x 24 tubes (eppendof)
Rotor type：angle. 45°.
Speed：variable from 1000~13000 rpm.
R.P.M. display：rpm led display.
Timer：0~15 min. mechanical time with bell.
Power：110/220/240V，50/60Hz，10/5A.
Dimension：360(W)x370(D)x275(H)mm.
N.W.：14kgs
G.W.：16kgs

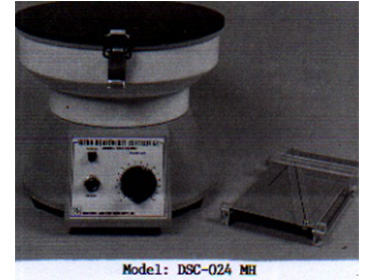

MODLE：DSC-024MH
Specification：(Economy model)
Rotor type：standard size ID 185mm a discal with screw lid.
Rotor capacity：24 capillary tube place.
Timer：up to 5 min. with bell.
Motor：high efficiency universal motor.
Speed (rpm)：max. speed fixed 12000.
R C F (g)：max. R.C.F. 14800 g.
Brake：handle brake.
Reader(%)：percentage reader.
Body coating：support is nylon steel, upper layer is powder coating and lid is acrypoly to have color transparent.
Dimension(cm)：22(W)x24(D)x20(H).
Net weight(kg)：10 kgs.
MODLE：DSC-024MH
Specification：(Economy model)
Rotor type：standard size ID 185mm a discal with screw lid.
Rotor capacity：24 capillary tube place.
Timer：up to 5 min. with bell.
Motor：high efficiency universal motor.
Speed (rpm)：max. speed fixed 12000.
R C F (g)：max. R.C.F. 14800 g.
Brake：handle brake.
Reader(%)：percentage reader.
Body coating：support is nylon steel, upper layer is powder coating and lid is acrypoly to have color transparent.
Dimension(cm)：22(W)x24(D)x20(H).
Net weight(kg)：10 kgs.

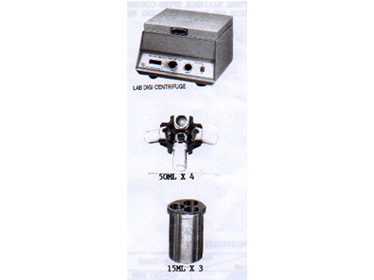

DIGITAL CENTRIFUGE
MODEL：DSC-504SHD
Feature：
＊ DS lab. Digital centrifuge is table top square model.
＊ High quality, low noise and low cost.
＊ Safety balance can to add to motor life and to lower noise.
＊ Stainless steel rotor chamber easy to wash clean.
＊ High quality and high precision universal motor.
＊ Precision mechanical timer with bell, heat resisting to 120℃.
＊ Electronic fan cooling motor.
＊ Easily operating no need special training.
Specification：
Capacity ：10ml, 15ml, x 12 tubes. 50ml x 4 tubes.
Rotor ：swing out rotor.
Speed ：variable from 500~3000 rpm.
Display ：rpm led display.
Timer ：0~30 min. mechanical timer with bell.
Power ：110/220/240V，50/60Hz，7/3.5A
Dimen ：405(W)x415(D)x295(H)mm
N.W. ：18kgs
G.W. ：20kgs

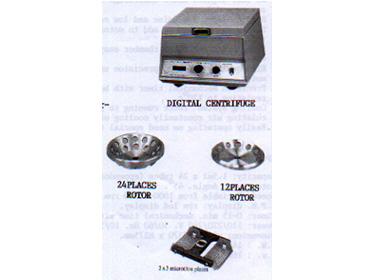

MODEL：DSC-1524SD、DSC-1512SD、DSC-230PSD
Feature：
＊ DS lab. Digital centrifuge is table top square model.
＊ High quality, low noise and low cost.
＊ Safety balance can to add to motor life and to lower noise.
＊ Stainless steel rotor chamber easy to wash clean.
＊ High quality and high precision universal motor.
＊ Precision mechanical timer with bell, heat resisting to 120℃.
＊ Cooling system：rotor running to produce circulating air
constantly cooling off motor.
＊ Easily operating no need special training.
Specification：
Capacity ：10ml, 15ml x 12 . 16, or 25 tubes.
Rotor type：Angle 45°.
Speed ：variable from 500~4000 rpm.
R.P.M. display ：r.p.m. led display.
Timer ：0~30 min. mechanical timer with bell.
Power ：110/220/240V，50/60Hz，7/3.5A
Dimension：405(W)x415(D)x295(H)mm
N.W. ：18kgs
G.W. ：20kgs
