詳細介紹:

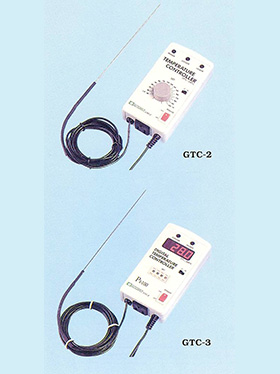

Model | GTC-1 | GTC-2 | GTC-3 | GTC-4 |
Temperature Range | -10~100℃ | 50~200℃ | 0~199.9℃ | 0~600℃ |
Setting Mode | Analog | Analog | Digit | Digit |
Accueacy | ±2%FS | ±2%FS | ±1%FS | ±1%FS |
Probe Type | Thermistor | Thermistor | PT100Ω | TC K |
Probe Size | Φ4x200㎜ Cable:2.5m | Φ4x200㎜ Cable:2.5m | Φ4x200㎜ Cable:2.5m | Φ5x200㎜ Cable:2m |
Control Mode | Select cooler/heater one point | |||
Output Connector | 3p power socket | |||
Output | The control output AC Voltage is same as the input AC Voltage | |||
Relay Contact | 10A for AC 125V/8A for AC240V | |||
Power Source | 110V or 220V AC,50/60HZ |
*These instruments are compact for temperature measurement and offer two kind of application, one is cooler control and the other one is heater control.
